How to Use Gmail SMTP Server for Sending Email

Learn how to use the Gmail SMTP server for sending emails from your own Gmail account.

This step-by-step tutorial describes how you can connect to the Gmail SMTP server for sending emails from a Node.js web application that could be deployed on Google Cloud Functions, AWS Lambda, Cloud Run or running on your local machine.

And unlike most other Node SMTP tutorials that use the username and password combination, this approach uses OAuth and doesn’t require you to turn on less secured apps access in your Google account.

Create Gmail OAuth Credentials

Create a new Google Cloud Project and enable the Gmail API as described in a previous tutorial.

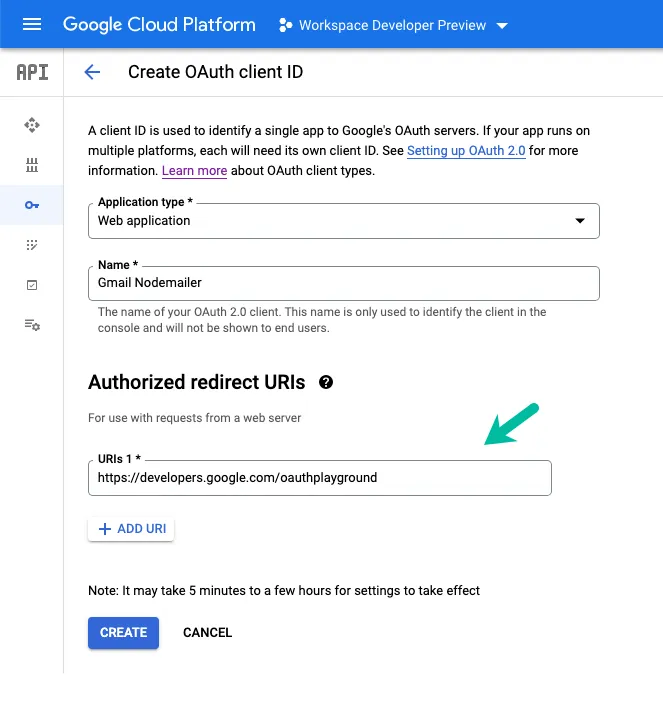

Gmail SMTP OAuth Application

In the APIs & Services section, click on Credentials and click on Create credentials > OAuth Client Id to create a new client ID that will be used to identify your application to Google’s OAuth servers.

Set the application type as Web Application and put the following URL in the Authorized Redirect URI.

https://developers.google.com/oauthplayground

Click the Create button and you’ll be provided the OAuth Client ID and Client Secret values that you’ll need in the next step.

Create Gmail Refresh Token

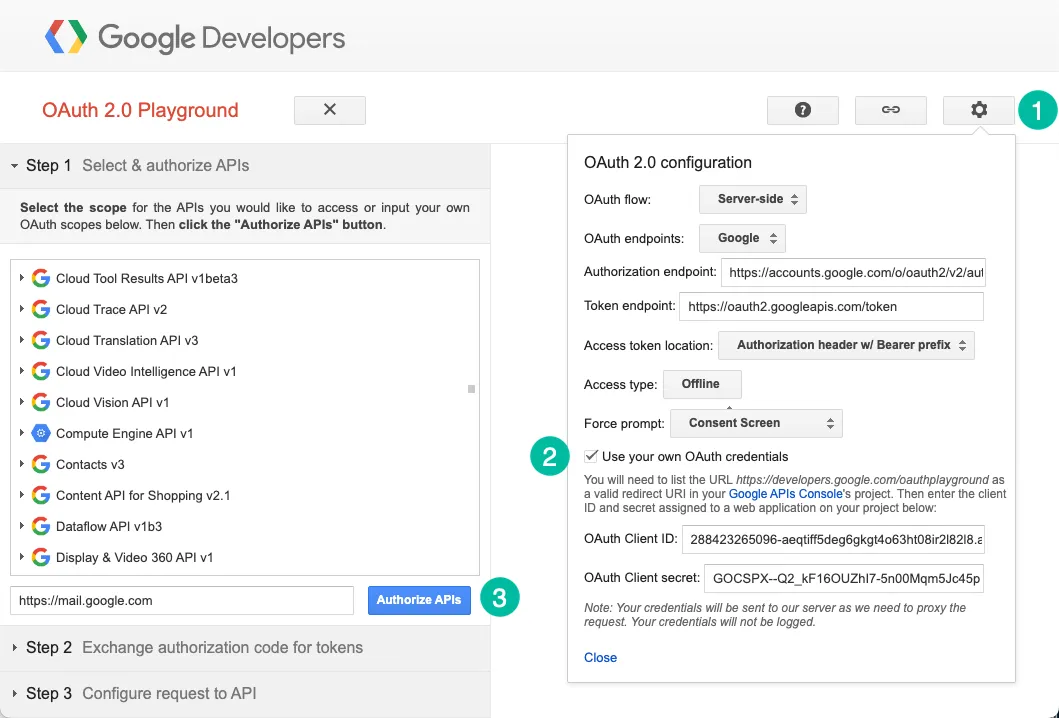

Gmail Access Refresh Token

Next, we’ll generate a refresh token using the Google Developer OAuth 2.0 playground. The access tokens are valid for an hour but the refresh tokens stay valid forever (unless manually revoked) and can be used to generate a fresh access token.

Go to google.com/oauthplayground, click the Gear Icon and check the option that says Use your own OAuth credentials. Copy-paste the Client ID and Client Secret that you have generated in the previous step.

Inside the Select & Authorize APIs section, enter the scope https://mail.google.com and click the Authorize APIs button to generate the authorization code.

Click the Exchange authorization code for tokens to generate the refresh token that we’ll require in the next step.

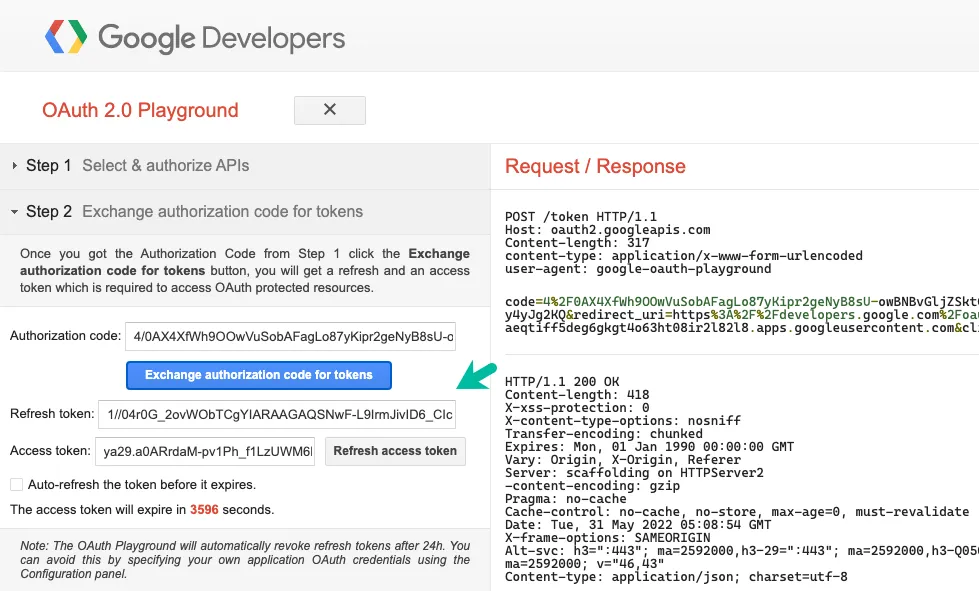

Refresh Token

Prepare the Node.js Application

Create a new folder and install the googleapis and nodemailer packages.

mkdir gmail-smtp-sender
cd gmail-smtp-sender
npm init --y
npm install dotenv googleapis nodemailer --save
touch index.js

Create a new .env file in the root folder and add the credentials in the file. Add the file to .gitignore so it is not added to the repository.

// Replace these with your own credentials
CLIENT_ID = 'r2l82l8.apps.googleusercontent.com'
CLIENT_SECRET = 'GOCSPX-5n00Mqm5Jc45p'
REFRESH_TOKEN = '1//04yt8hEatvIr3uyk-ZJSYIhmYqMk4C4EqfPK24w'
REDIRECT_URL = 'https://developers.google.com/oauthplayground'

Open the index.js file and add the following code. You may need to replace the sender’s email with the email address of your own Gmail account that you have authorized to send email.

The Gmail SMTP server name is smtp.gmail.com and the Gmail SMTP port is 465. You can send up to 100 emails per day when the messages sent via SMTP.

const { google } = require('googleapis');
const nodemailer = require('nodemailer');
require('dotenv').config();

const sendEmail = async () => {
  const oauth2Client = new google.auth.OAuth2(
    process.env.CLIENT_ID,
    process.env.CLIENT_SECRET,
    process.env.REDIRECT_URL
  );
  oauth2Client.setCredentials({ refresh_token: process.env.REFRESH_TOKEN });

  const accessToken = await oauth2Client.getAccessToken();
  const myEmail = 'amit@labnol.org';

  const smtpTransport = nodemailer.createTransport({
    service: 'gmail',
    host: 'smtp.gmail.com',
    port: 465,
    secure: true,
    auth: {
      type: 'OAuth2',
      user: myEmail,
      clientId: process.env.CLIENT_ID,
      clientSecret: process.env.CLIENT_SECRET,
      refreshToken: process.env.REFRESH_TOKEN,
      accessToken,
    },
  });

  const mailOptions = {
    from: 'Sender Name <amit@labnol.org>',
    to: 'Receiver Name <hello@example.com>',
    subject: 'Test email 🚀',
    text: 'This is a test email from Node.js 🎉',
    html: 'This is a <b>test email</b> from Node.js 🎉',
  };

  try {
    const response = await smtpTransport.sendMail(mailOptions);
    console.log(`Email sent!`, response);
  } catch (f) {
    console.error(f.message);
  } finally {
    smtpTransport.close();
  }
};

sendEmail().then(() => console.log('Done!'));

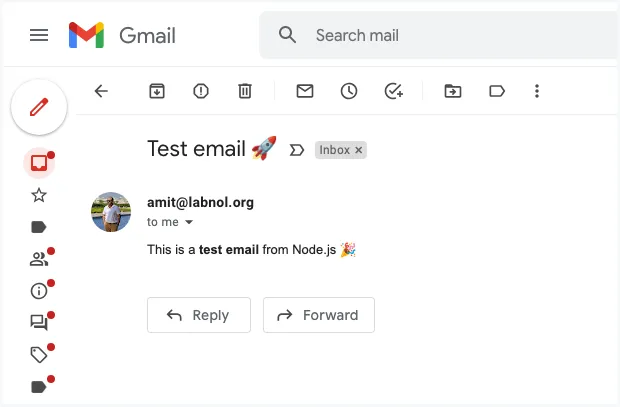

Here’s a test email sent by the application. If the email receiver client doesn’t support HTML mail, the plain text version is rendered.

Gmail Sent email

Correct Gmail OAuth Scope

While you can send emails from Gmail using the https://www.googleapis.com/auth/gmail.send scope, you would need to use the restricted https://mail.google.com/ scope for Gmail SMTP. If your OAuth client uses a different scope when requesting permissions for an user, the application will return the 535-5.7.8 Username and Password not accepted error.
